TV MOUNTING IN Vancouver, WA
Wall mounts certified to UL 2442 are tested at four times their rated weight for televisions under 100 pounds, and the electrical code prohibits running an ordinary power cord concealed inside a wall. TTP Handymen LLC handles TV mounting across Vancouver, WA, lag bolting into solid framing, concealing runs with in wall rated cable and recessed power kits, and setting the height for where people actually sit. Free assessments, and all of our work is insured to $1 million.
THE MOUNT IS NOT THE WEAK POINT. THE WALL IS.
Every mount sold is rated well beyond the weight of the television going on it. What fails is the connection between the mount and the building. Lag bolts into drywall, a single stud caught on one side, or masonry anchors set into brick face instead of a mortar joint. Every one of those holds fine until the day it does not.
Finding real framing and fastening into it properly is the entire job, and it is invisible the moment the panel goes on. It is also the part nobody can check afterward.
✓ Framing located and lag bolted, never drywall alone
✓ Mount rating checked against the actual television weight
✓ In wall rated cable and recessed power kits used
✓ Height set from the seating, not from the fireplace
TV MOUNTING
A POWER CORD BEHIND DRYWALL IS AN ACTUAL CODE VIOLATION.
Flexible cords are not permitted as a substitute for fixed wiring and may not be run concealed through walls. Plenty of installations do it anyway, because the alternative takes an extra half hour. The compliant way is a recessed in wall power kit or a new receptacle behind the panel, with signal cable that is rated for in wall use. That is what we install, and it looks identical from the room.
FIREPLACE WALLS ARE THE MOST COMMON REQUEST AND THE TRICKIEST.

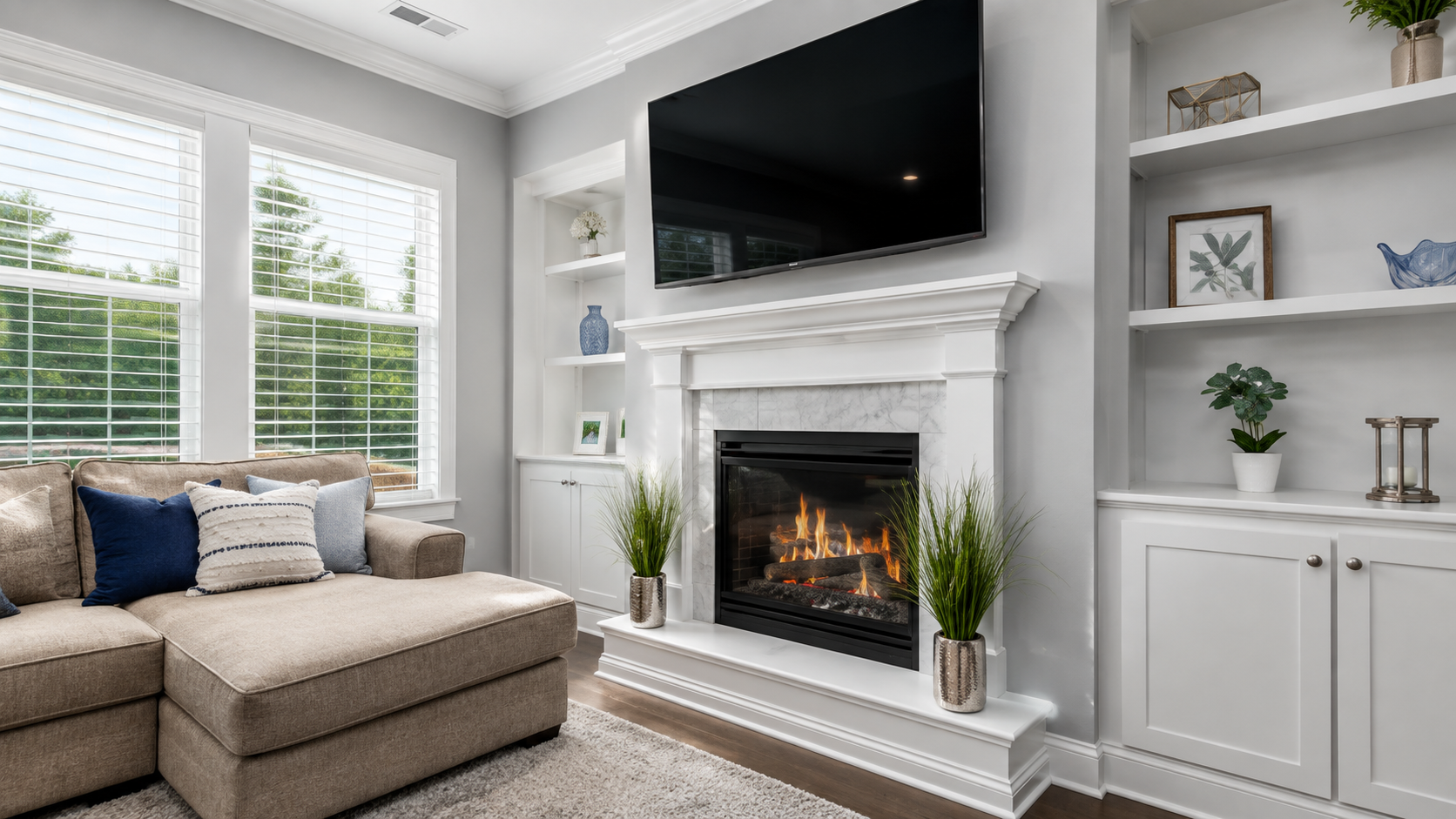

Mounting above a fireplace is popular in homes here, and it brings three problems at once. Height that puts the screen well above comfortable viewing, heat rising from the firebox, and a masonry or bumped out wall that needs a completely different fixing approach. We will do it, and we will tell you honestly what the viewing angle will actually be like before anything is drilled into the chimney breast.
WHAT SITS BEHIND THE DRYWALL DECIDES EVERYTHING.
Studs are usually 16 inches on center, but usually is doing a lot of work in that sentence. Over 4 years of mounting televisions around Clark County we have found blocking in odd places, plumbing running through interior walls, old knob and tube in older homes near downtown, and studs at spacings nobody would predict. Checking before drilling takes minutes and is the difference between a clean install and an expensive afternoon.
WHAT A PROPERLY MOUNTED TV DELIVERS
A PANEL THAT CANNOT FALL
Lag bolts into framing carry the load the way the mount was designed and tested to. Drywall anchors under a heavy television are simply a matter of time.
COMFORTABLE VIEWING HEIGHT
Screen center set near seated eye level removes the neck strain that comes from every television mounted at the height it looked good on the wall.
NO VISIBLE CABLES
Signal and power routed inside the wall properly leaves nothing hanging below the panel, which is most of the visual reason people mount a television at all.
COMPLIANT ELECTRICAL WORK
In wall rated cable and a recessed power solution keep the installation on the right side of code, which matters at sale and for your insurance position.
FULL RANGE OF MOTION
Tilt and articulating mounts installed with correct clearance actually reach their full travel rather than binding against the wall or a nearby corner. Clearance gets planned before the bracket goes up.
THE WALL LEFT INTACT
Correct placement first time means one set of holes. Repeated attempts to find a stud leave a wall that needs patching and painting afterward. No patching and no touch up paint afterward.
WHAT WE MOUNT
OUR TV MOUNTING WORK
Mounting jobs vary enormously with the wall, the panel size, and where the equipment lives. These are the installations we handle most often for homes around Vancouver. Tell us the panel size and the wall type.
STANDARD
Drywall and Stud Mounting

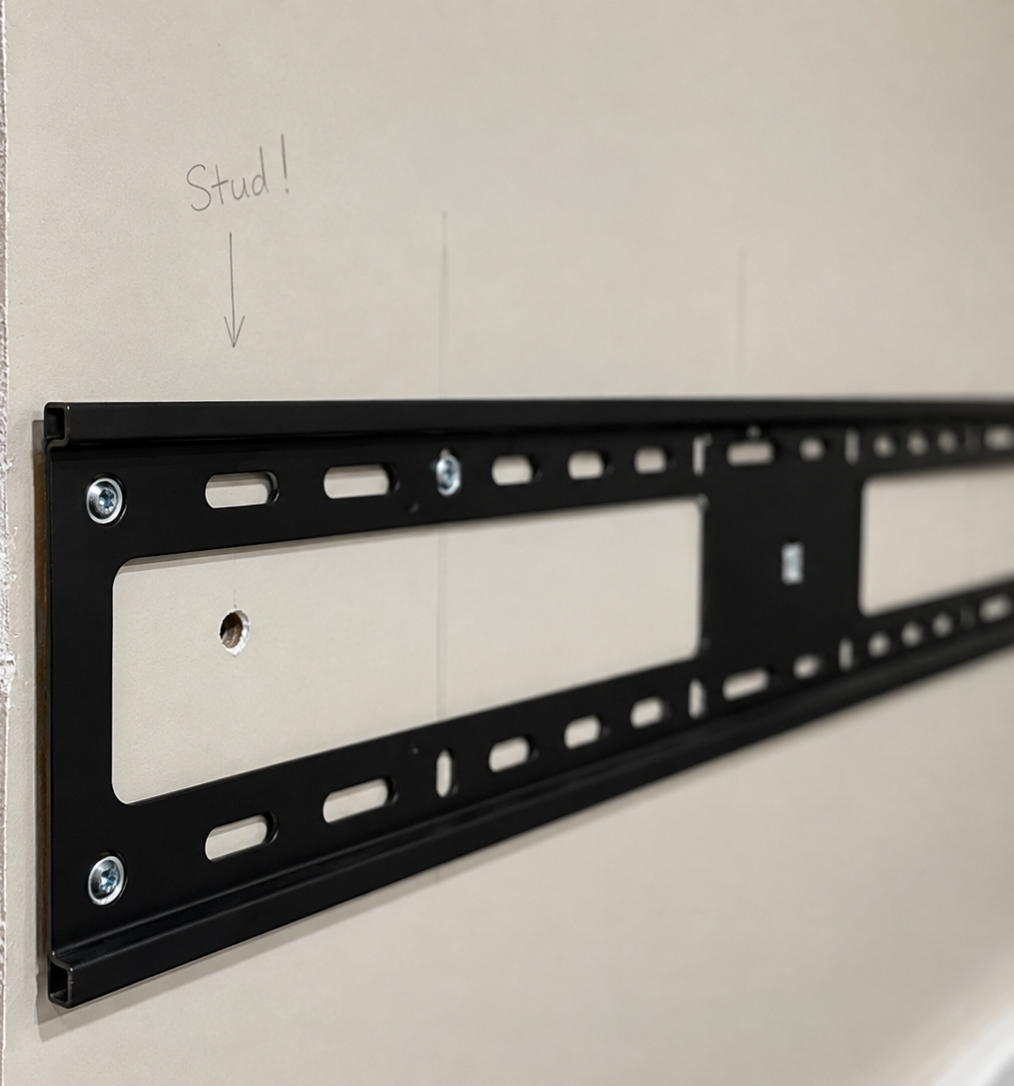

Framing gets located, the mount gets lag bolted into solid studs, and the panel gets leveled. This is the most common install and the most commonly done badly. Framing gets confirmed by drilling a pilot, not by trusting a sensor.
MASONRY

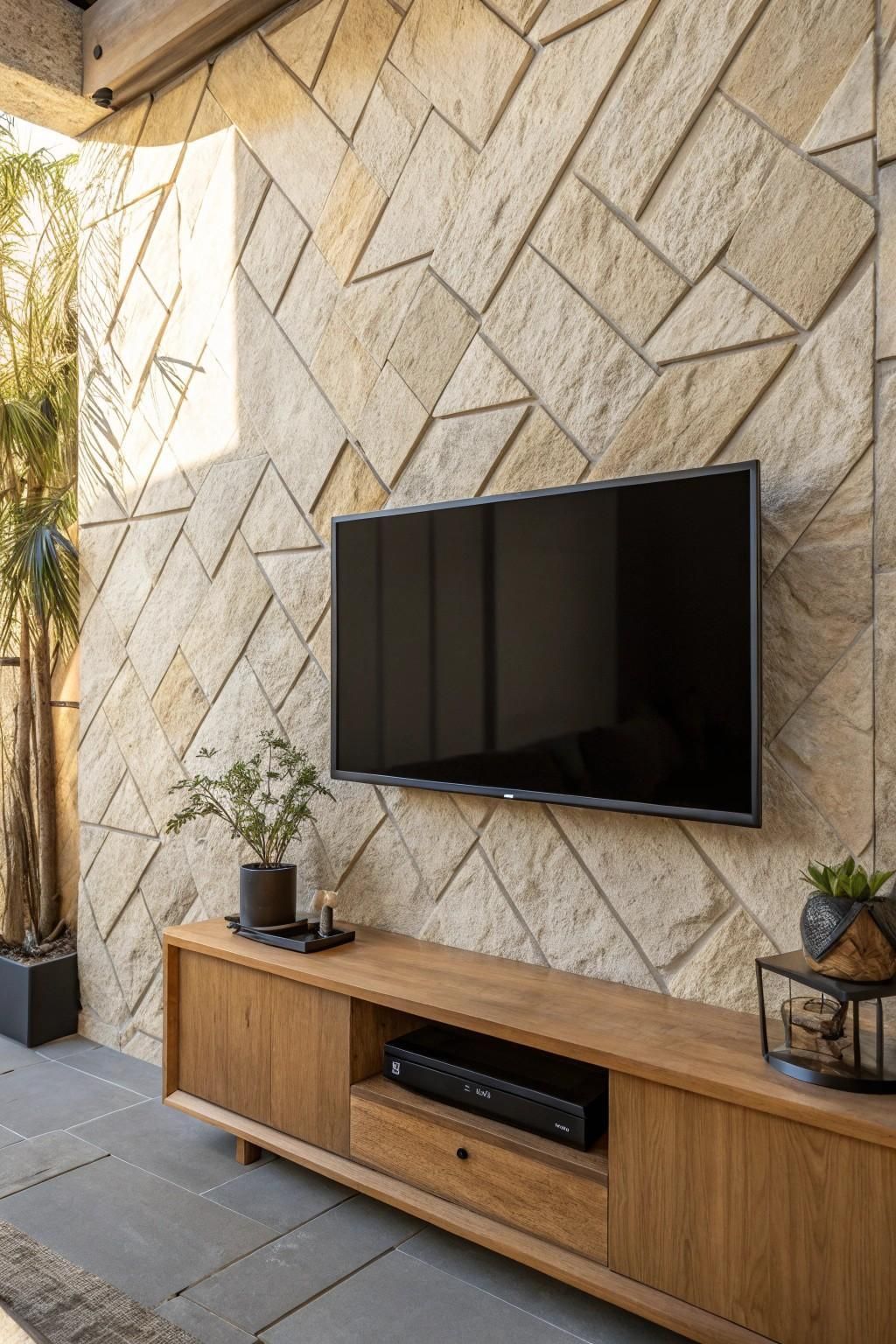

Brick and Stone Installation
Brick, block, and stone need masonry bits and sleeve anchors set into the right part of the wall. Fixing into brick face rather than mortar is a frequent and serious mistake.
FIREPLACE

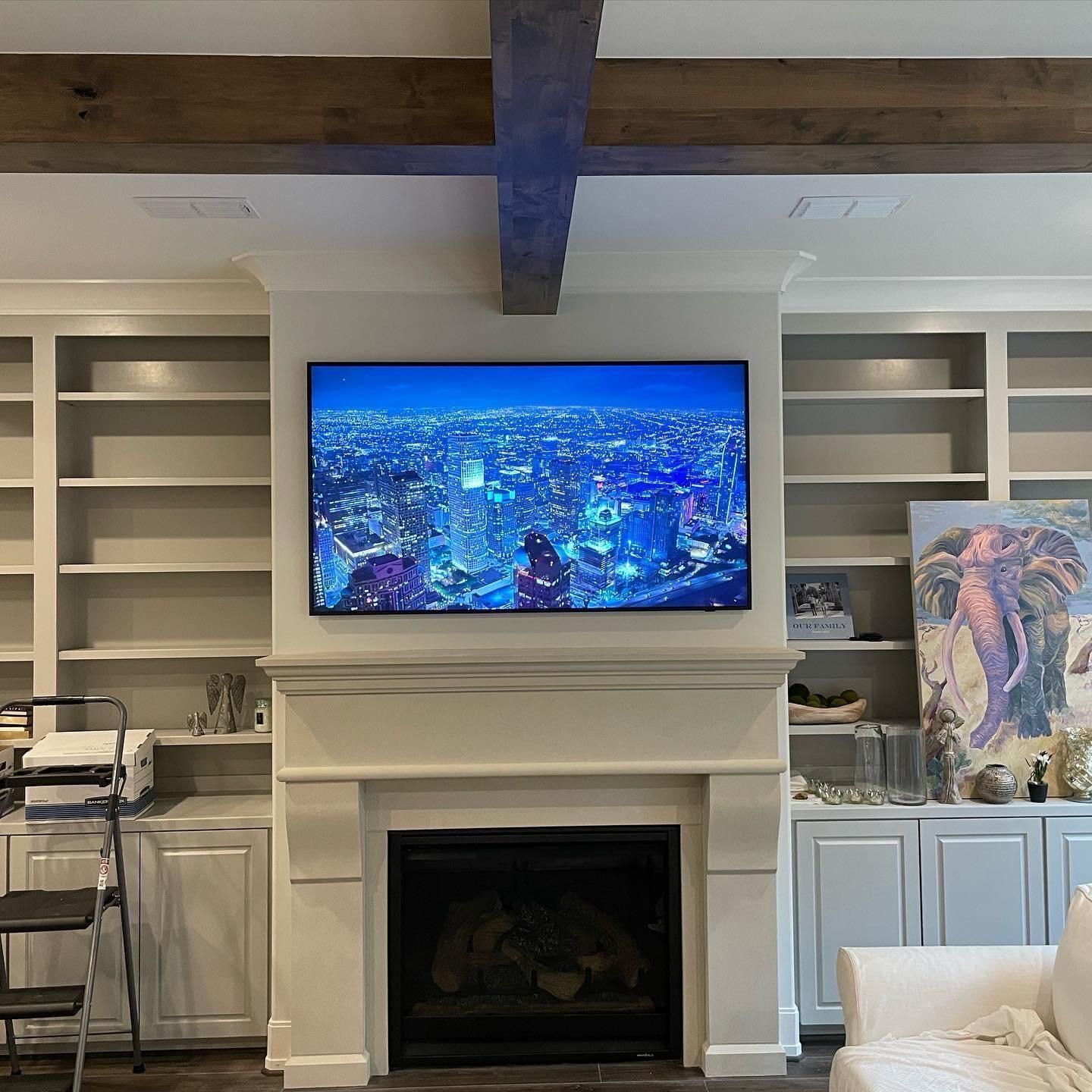

Above Fireplace Mounting
Chimney breasts get assessed for construction, heat exposure, and viewing angle. We will tell you plainly what the neck angle will be from the sofa before drilling anything. Heat exposure gets checked before anything is committed to.
CONCEALMENT

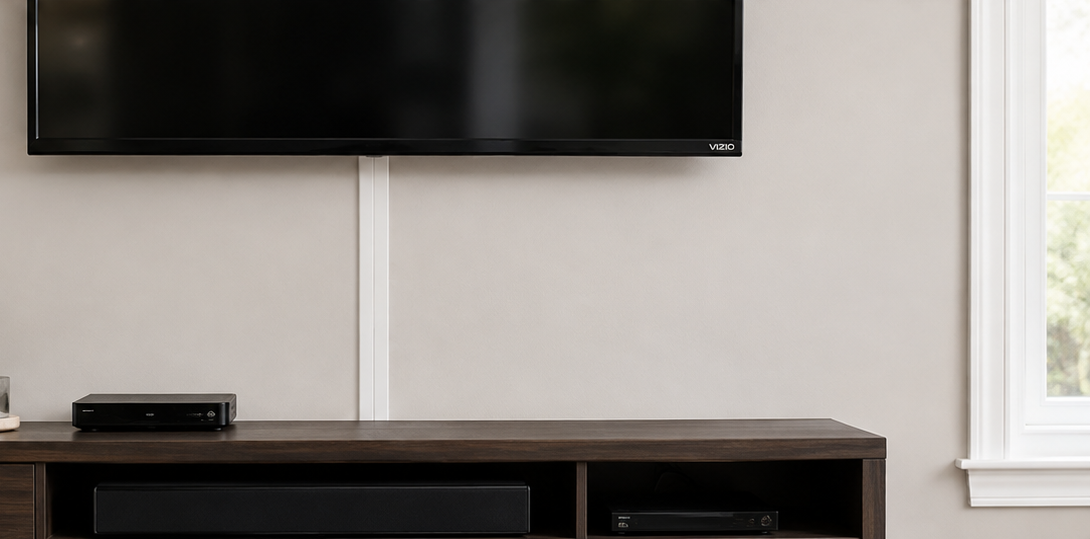

Cable and Power Concealment
Signal cable rated for in wall use gets run inside the wall, and power gets handled with a recessed kit or a new receptacle rather than a cord pushed through drywall.
MOVEMENT

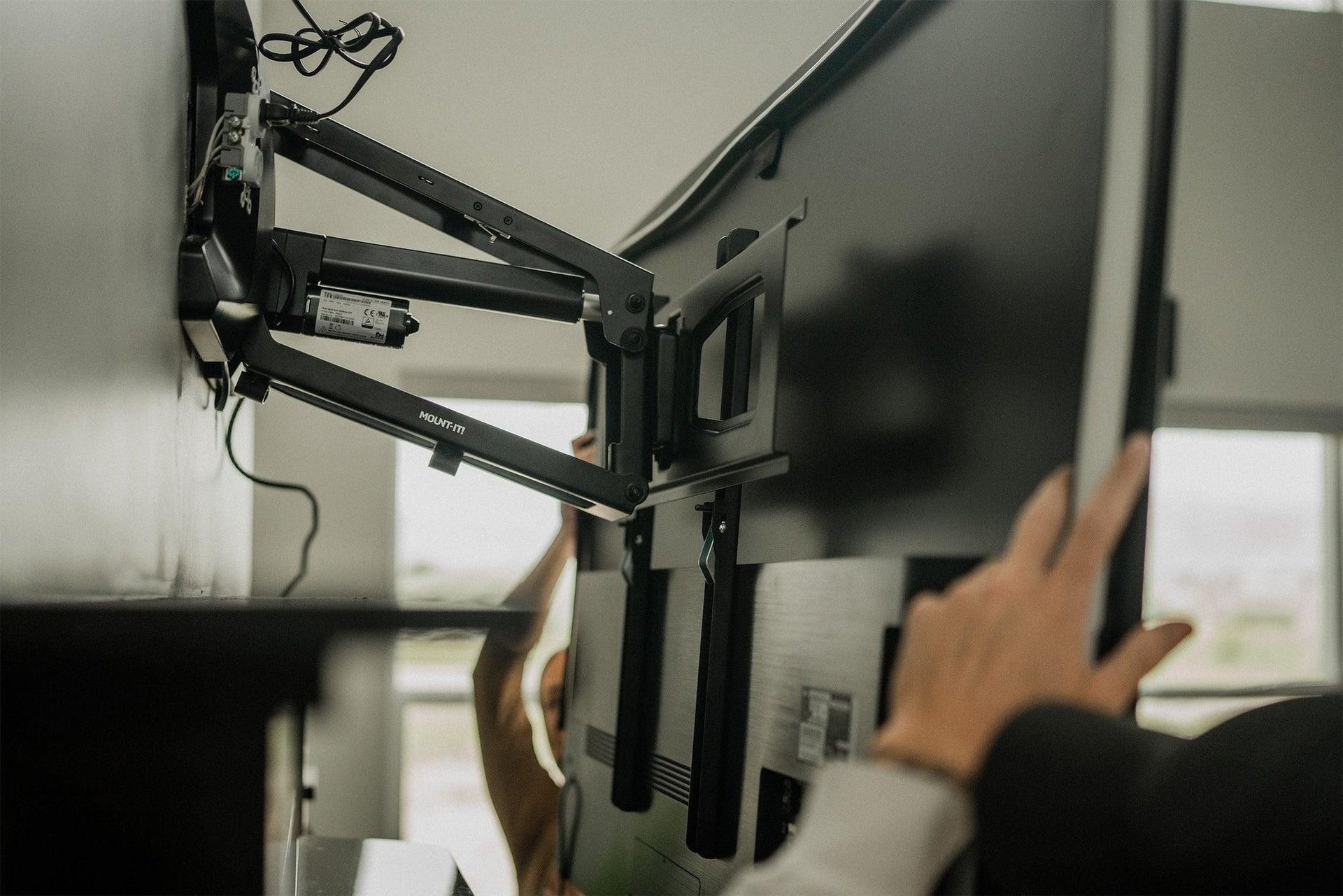

Articulating and Full Motion Mounts
Swing arm and full motion mounts get installed with the clearance they need to actually articulate, and fastened into framing that can carry the leverage they generate. Leverage at full extension multiplies the load on every fixing considerably.
SETUP

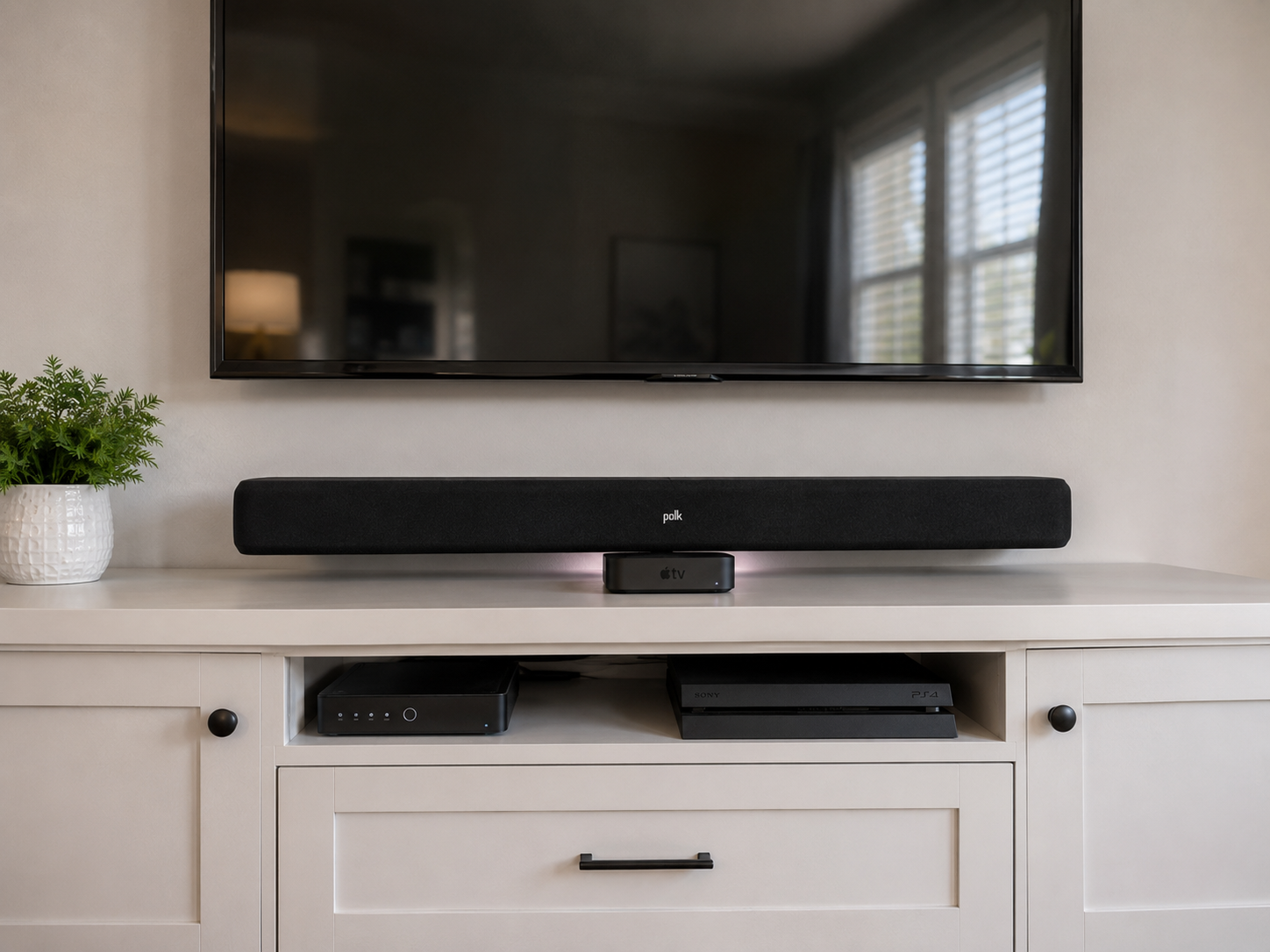

Component and Soundbar Installation
Soundbars, shelves, streaming boxes, and consoles get mounted, connected, and tidied so the finished wall has no visible cabling and everything actually works before we leave. Everything gets tested working before we leave, not just connected up.
THE WORD ON OUR WORK
WHAT OUR CLIENTS SAY.
Two things get mentioned most. That the television ended up lower than expected and is far more comfortable to watch, and that there is genuinely nothing visible below it. Both are decisions made before the drill comes out rather than afterward.
FAQ
FREQUENTLY ASKED QUESTIONS.
Mounting questions cover height, wall type, and cable concealment. Here is what homeowners around Vancouver most often want to know before booking a television installation. Send a photo of the wall if unsure.
How high should a TV be mounted?
Screen center should sit close to seated eye level for the room, which is usually lower than people expect. Comfort matters more than the wall looking balanced when nobody is watching. TTP Handymen LLC mounts panels across Vancouver, WA.
Can a TV be mounted without hitting studs?
For very small panels with heavy duty toggles, sometimes. For anything of real size it is not worth the risk, and finding framing is a few minutes of work. We locate framing on every installation regardless.
Is it safe to mount a TV over a fireplace?
It can be, depending on construction and heat exposure. The bigger issue is usually viewing angle, since the height forces you to look up for the whole time you are watching.
Can I run the power cord inside the wall?
No. Flexible cords may not be used as a substitute for fixed wiring or run concealed in walls. A recessed in wall power kit or a new receptacle behind the panel is the compliant route.
What is VESA and why does it matter?
It is the standardized spacing of the mounting holes on the back of a television, given in millimeters. The mount has to match that pattern, and screen size alone does not determine it.
What is the difference between fixed, tilting, and full motion?
Fixed sits flat and close to the wall. Tilting angles downward for higher placements. Full motion swings out and rotates, which suits rooms with seating at several different angles. Room layout usually settles the choice.
How much weight can a wall mount hold?
Certified mounts are tested well beyond their rating, at four times the load for panels under 100 pounds. The real limit is almost always the fixing into the wall behind it.
What should I have ready before the appointment?
The television unboxed if possible, the mount and hardware, any components going with it, and a decision on which wall. Clear furniture away so we can work at the wall. Everyday work for TTP Handymen LLC in Vancouver, WA.
HOW WE WORK
FROM BLANK WALL TO CLEAN INSTALL, HERE IS HOW.
STEP 01
Assess the wall
Construction type gets identified, framing gets located and confirmed, and we check for plumbing and wiring before committing to a position. Older homes here hold more surprises than newer ones. That check takes minutes and prevents an expensive afternoon.
STEP 02
Confirm the height together
Height gets set from the seating rather than from the wall, and we mark it and let you sit and look before anything is drilled into place. Most people choose lower once they have actually sat and looked.
STEP 03
Match mount to television
Panel weight and VESA pattern get checked against the mount's rating and hole pattern. Articulating mounts get extra scrutiny, since leverage multiplies the load at the wall. The rating on the box assumes a solid fixing behind it.
STEP 04
Fix into framing
Lag bolts go into solid studs or, on masonry, sleeve anchors go into mortar joints. The bracket gets leveled and torqued before the panel goes anywhere near it. Masonry fixings go into mortar joints rather than the brick face.
STEP 05
Conceal the cabling
In wall rated signal cable gets routed inside the wall and power gets handled with a recessed kit or a new receptacle, so nothing hangs below the finished panel. Ordinary power cords never get run inside a wall here.
STEP 06
Connect, test, and tidy
Components get connected, the picture gets tested, the mount gets run through its full travel, and dust and packaging leave with us rather than staying behind. You get a working setup, not a mounted panel and a box of cables.
Get Your Free Estimate
GET IT ON THE WALL WITH NOTHING SHOWING, FREE.
One set of holes, framing behind every bolt, and no cables hanging down the wall. Reach out through the contact page with the panel size and the wall you have in mind and we will price it.
WHAT YOUR MOUNTING VISIT COVERS:
✓ Wall construction identified and framing confirmed
✓ Plumbing and wiring checked before any drilling
✓ Height agreed from the seating position first
✓ Mount rating and VESA pattern verified
✓ In wall rated cable and compliant power solution
✓ Components connected, tested, and tidied up
